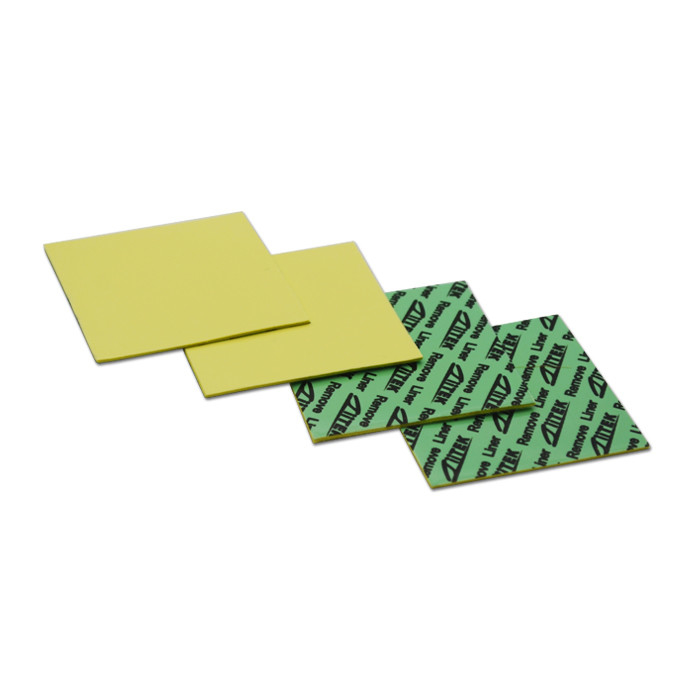

TIF100-19S CPU Thermal Pad Thermal Interface Material Silicone Base With 1.5W/MK Thermal Conductivity For Cooling
CPU Thermal Pad Thermal Interface Material Silicone Base With 1.5W/MK Thermal Conductivity For Cooling
Product descriptions
TlF®100-19S Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductivity 1.5W/mK
> NMoldability for complex parts
> Soft and compressible for low stress applications
> RoHS compliant
> UL recognized
> Easy release construction
Application
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
| Typical Properties of TIF®100-19S Series |
| Property |
Value |
Test method |
| Color |
Yellow |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Density(g/cm³) |
2.3 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.010~0.020
(0.25~0.50)
|
0.030~0.200
(0.75~5.00)
|
ASTM D374 |
| Hardness (Shore 00) |
65 |
45 |
ASTM 2240 |
| Continuos Use Temp |
-40 to 200℃ |
*** |
| Breakdown Voltage(V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant @1MHz |
4.5 |
ASTM D150 |
| Volume Resistivity |
＞1.0X1012Ohm-meter |
ASTM D257 |
| Thermal Conductivity (W/m-K) |
1.5 |
ASTM D5470 |
| 1.5 |
ISO22007 |
| Fire rating |
V-0 |
UL 94 (E331100) |
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2(Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
