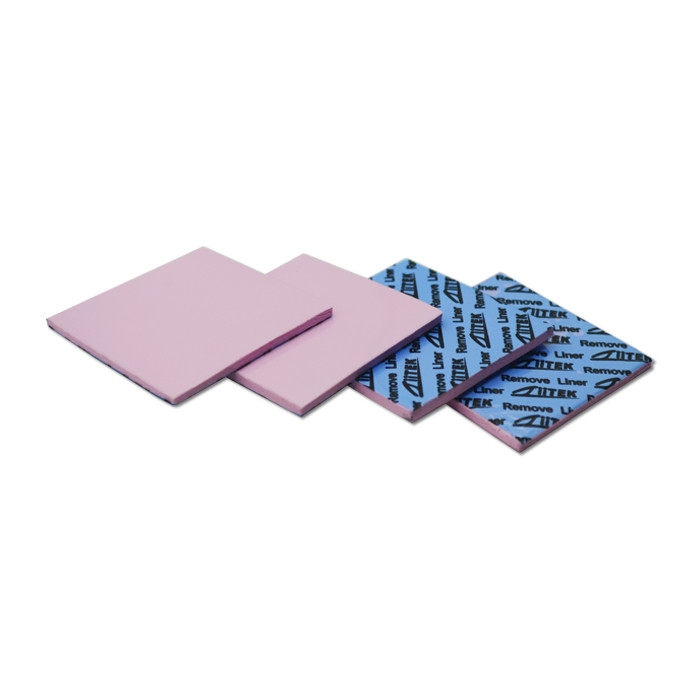

TIF100-20-50F Pink Thermally Conductive Pad For Unmanned DroneHeat Dissipation

TIF100-20-50F Pink Thermally Conductive Pad For Unmanned DroneHeat Dissipation​

Product descriptions

TlF100-20-50F use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

Features

> Good thermal conductive 2.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses

Application

> Mainboard/mother board
> Notebook
> Power supply
> Micro heat pipe thermal solutions
> CPU
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components

Standard Thicknesses

0.020-inch to 0.200-inch (0.5mm to 5.0mm)

Product Sizes:

8" x 16"(203mm x406mm)

Individual die cut shapesand and custom thickness can be supplied.

Please contact us for confirming

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Independent R&D team
