TIA800FG High Performance White Double Sided Acrylic Adhesive Thermal Adhesive Tape For LED Products
High Performance White Double Sided Acrylic Adhesive Thermal Adhesive Tape For LED Products
The TIA®800FG Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.
Features
> Thermal Conductivity: 0.8W/mK
> High performance,thermally conductive acrylic adhesive.
> Hihg bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
Applications
> Mount heat sink onto BGA graphic processor or drive processor.
> Mount heat spreader onto power converter PCB or onto motor control.
> Can be used instead of heat cure adhesive,
> Screwmounting or clip mounting.
| Typical Properties of TIA®800FG Serie |
| Product Name |
TIA®805FG |
TIA®806FG |
TIA®808FG |
TIA®810FG |
TIA®812FG |
TIA®815FG |
TIA®820FG |
Test Method |
| Color |
White |
Visual |
| Adhesive Type |
Acrylic Adhesive |
******** |
| Backing Type |
Fiberglass |
******** |
| Recommended Operating Temperature(℃) |
-40 ~ 125 |
******** |
| Composite Thickness(inch/mm) |
0.005
0.13
|
0.006
0.15
|
0.008
0.20
|
0.010
0.25
|
0.012
0.30
|
0.015
0.38
|
0.020
0.51
|
ASTM D374 |
| Voltage Breakdown(V)) |
≥2500 |
≥3000 |
≥3500 |
≥4000 |
≥4200 |
≥4500 |
≥5000 |
ASTM D149 |
| Thermal Conductivity(W/mK) |
0.8 |
ASTM D5470 |
| 180° Peel Adhesion (gf/inch) Steel, Immediate |
≥ 1000 |
ASTM D3330 |
| 180° PeelA dhesion (gf/inch) Steel, Steel 24 hrs |
≥ 1200 |
ASTM D3330 |
| Holding Power (H/inch) @25℃ |
≥ 48 |
ASTM D3654 |
| Holding Power (H/inch) @80℃ |
≥ 48 |
ASTM D3654 |
Product Specifications
Standard Thickness: 0.005" (0.13 mm),0.006" (0.15 mm), 0.008" (0.20 mm), 0.010" (0.25 mm), 0.012" (0.30 mm), 0.015" (0.38 mm), 0.020" (0.51 mm),
Standard Size: 16" × 100" (406 mm × 30.48 m)
Reinforcing Carrier: TIA®800FG Series rolls can be reinforced with fiberglass.

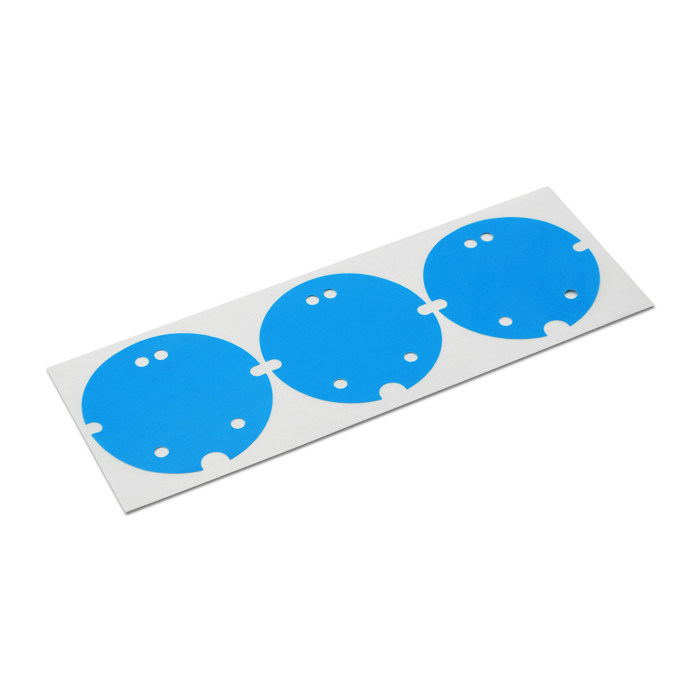

The TIA® Series can be provided with die-cutting into various shapes.For different thicknesses or more information about thermally conductive materials, please contact our company.
