Z-Foam800-01EC High Compression Silicone Foaming Material For Car Battery

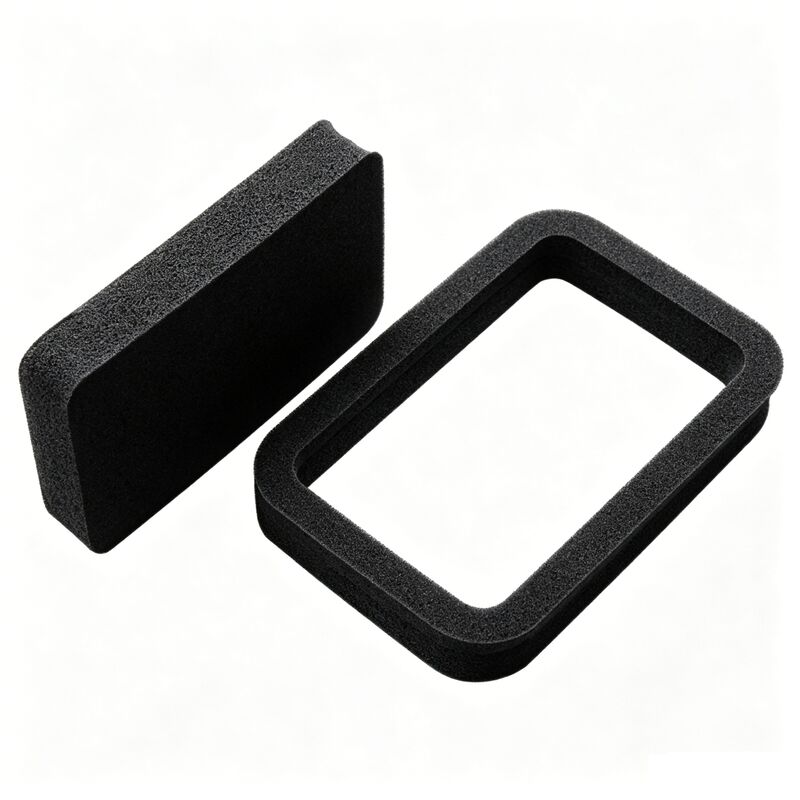

Z-Foam®800-01EC High Compression Silicone Foam Gasket For Car Battery
Z-Foam®800-01EC Series foamed silicone is a foam material formed by the foaming of polysiloxane, retaining the excellent properties of silicone polymers, such as resistance to high and low temperatures, ultraviolet light, ozone, weatherability, insulation, and environmental friendliness, while also possessing the characteristics of foam materials, including low density, excellent sound absorption, and shock resistance. Its outstanding compressive deformation resistance,creep resistance,flame retardancy,and mechanical fatigue resistance make it an ideal material for various high-performance applications such as sealing,vibration damping,cushioning, sound insulation, protection, insulation, fireproofing, and noise absorption.
Features
>Resistant to mechanical fatigue
>Resistant to ozone and ultraviolet rays
>Good insulation properties
>Excellent flame retardancy
>Excellent resistance to compression set and creep
Applications
>Communication Equipment
>Smart device
>Cables and Optical Fibers
>Buffer pads and washers
>Telecommunication and Electrical Cabinets
| Typical Properties of Z-Foam®800-01EC Series |
| Properties |
Value |
Test method |
| Color |
Black |
Visual |
| Structure & Component |
Silicone rubber |
- |
| Density (g/cm3) |
0.26 |
ASTM D1056 |
| Compressive Stress (kPa) @25% |
35±10 |
ASTM D1056 |
| Compression Set (%)) @100℃ |
＜5.0 |
ASTM D1056 |
| Tensile Strength (MPa) |
≥0.2 |
ASTM D412 |
| Elongation At Break (%) |
≥80 |
ASTM D570 |
| Water Absorption (%) |
≤5.0 |
ASTM D412 |
| Volume Resistivity (Ω·cm) |
≥1.0 x 1015 |
ASTM D257 |
| Recommended Operating Temperature (℃)) |
-55~200 |
- |
| Flame Rating |
V-0 |
UL94 (E331100) |
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in Vietnam.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
