Wholesale Thermally Conductive Insulator Pad Customized Size TIS100-05

Name: Wholesale Thermally Conductive Insulator Pad Customized Size TIS100-05
Brand: CÔNG TY TNHH CÔNG NGHỆ ZIITEK VIỆT NAM
SKU: TIS100-05
Price: 4.10 USD
Availability: InStock

Product Details

Place of Origin: Vietnam

Brand Name: Ziitek

Certification: UL and RoHs

Model Number: TIS100-05

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: 0.1-10 USD/PCS

Packaging Details: 24*13*12cm cartons

Delivery Time: 3-5 work days

Payment Terms: T/T

Supply Ability: 100000pcs/day

Get Best Price

Product Details

Product Description

Highlight:

Products Name:	Wholesale Thermally Conductive Insulator Pad Customized Size TIS100-05	Thermal Conductivity:	1.0W/mk
Color:	Blue	Thickness Range:	0.23mm,0.3mm,0.45mm
Construction & Compostion:	Ceramic Filled Silicone Elastomer / Fiberglass	Specific Gravity:	1.72g/cc
Hardness:	50 Shore 00	Keywords:	Thermally Conductive Insulator Pad

Products Name:	Wholesale Thermally Conductive Insulator Pad Customized Size TIS100-05
Thermal Conductivity:	1.0W/mk
Color:	Blue
Thickness Range:	0.23mm,0.3mm,0.45mm
Construction & Compostion:	Ceramic Filled Silicone Elastomer / Fiberglass
Specific Gravity:	1.72g/cc
Hardness:	50 Shore 00
Keywords:	Thermally Conductive Insulator Pad

Wholesale Thermally Conductive Insulator Pad Customized Size TIS100-05

Wholesale Thermally Conductive Insulator Pad Customized Size TIS100-05

TIS100-05 Series products are the high-efficiency insulation ones with thermal conduction properties.The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

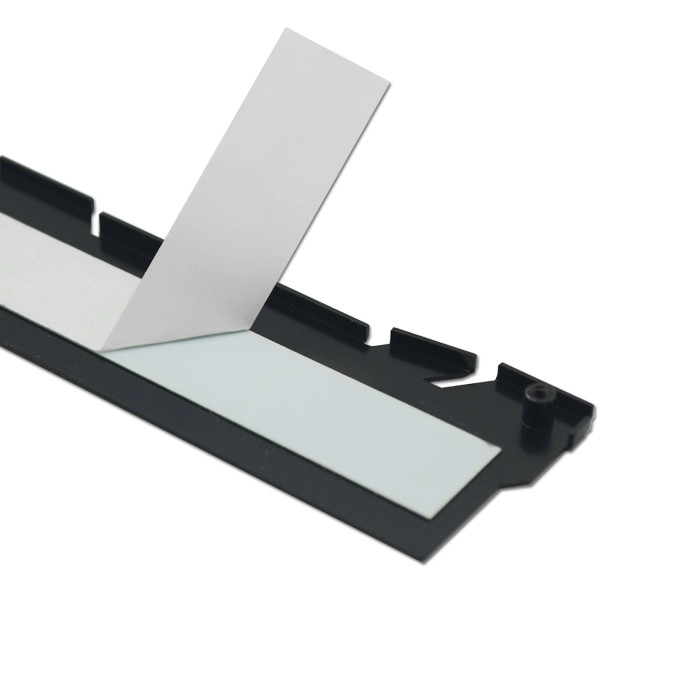

Wholesale Thermally Conductive Insulator Pad Customized Size TIS100-05 0

Features

> Highly thermal conductive
> High dielectric strength
> Low thermal resistance with high voltage isolation

> Easy release construction
> Resistant to teaars and punctures

Applications

> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

Typical Properties of TIS100-05 series
Product Name	TIS109-05	TIS112-05	TIS118-05	Test Method
Color	blue			Visual
Construction &Compostion	Ceramic filled silicone elastomer / Fiberglass			*******
Composite Thickness	0.23mm	0.3mm	0.45mm	ASTM D374
Hardness	50 Shore 00			ASTM D751
Specific Gravity	1.72g/cc			ASTM D297
Tensile Strength	425 Kpsi			ASTM D412
Continuous Use Temp	-45 to 180℃			*******
Dielectric Breakdown Voltage	>3500 VAC			ASTM D149
Dielectric Constant	5.5 MHz			ASTM D150
Volume Resistivity	4.0X10¹³ Ohm-meter			ASTM D257
Flame Rating	94 V0			E331100
Thermal conductivity	1.0 W/mK			ASTM D5470

Standard Thicknesses:
o.009" (0.228mm), 0.012"(0.304mm), 0.018"(0.457mm)

Consult the factory alternate thickness.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.

Request adhesive on doule side with "A2" suffix.

Product Sizes
12" x 160'(304mm x 48.76M)
lndividual die cut shapes and custom thickness can be supplied.

Pleasecontact us for confirming.
The product come standard with fiberglass reinforcement designatedby the suffix " FG".

Packaging Details & Lead time

The packaging of Thermal Insulation Materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
