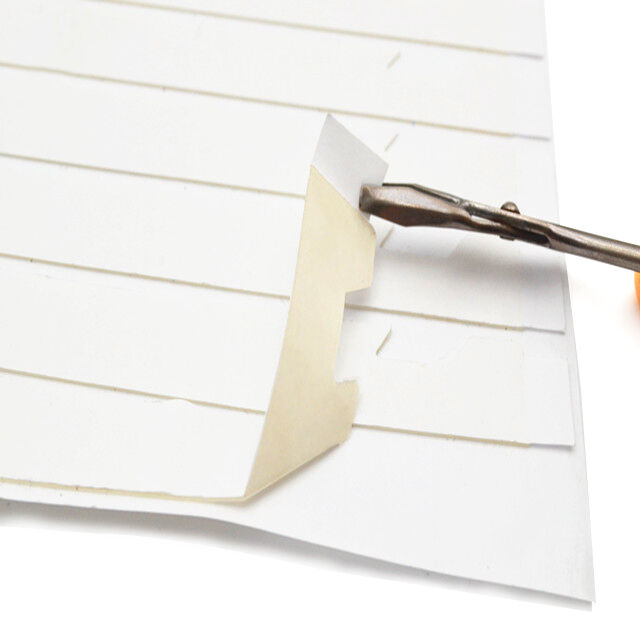

Good Adhesion TIA800Al Glass Fiber Mesh Strengthening High Temperature Heat Dissipation Double-Sided Tape Substitute screw
Good Adhesion TIA800Al Glass Fiber Mesh Strengthening High Temperature Heat Dissipation Double-Sided Tape Substitute screw
The TIA™800AL Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.
Features
> Thermal Conductivity: 1.6 W/mK
> allow for good conformability to irregular surfaces and good electrical isolation
> Easy Application
> Eliminates need for external hardware (screws, clips, etc.)
> Available with easy release tabs
> High performance, thermally conductive acrylic adhesive
> High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive
Applications
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED strip
| Typical Properties of TIA™800AL Series |
| Typical Properties |
TIA 806AL |
TIA 808AL |
TIA 810AL |
Test Method |
| Color |
White |
Visual |
| Adhesive Type |
Acrylic Adhesive |
****** |
| Backing Type |
Aluminum Foil |
****** |
| Continuous Use Temp |
-45℃ to 120 ℃ |
****** |
| Thickness |
0.006" / 0.152mm |
0.008" / 0.203mm |
0.010" / 0.254mm |
ASTM D374 |
| Voltage Breakdown |
> 1000 Vac |
> 1200 Vac |
> 1500 Vac |
ASTM D149 |
| 180° Peel Adhesion |
> 1200 g/inch(Steel Immediate) |
PSTC-1 |
| 180° Peel Adhesion |
> 1400 g/inch(Steel after 24 hrs) |
PSTC-1 |
| Holding Power 25℃/Hours |
> 48 Hours |
PSTC-7 |
| Holding Power 80℃/Hours |
> 48 Hours |
PSTC-7 |
| Thermal Conductivity |
1.6 W/mK |
ASTM D5470 |
Standard Thicknesses:
0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm)
0.010"(0.254mm) 0.015"(0.381mm) 0.020"(0.508mm)
Consult the factory alternate thickness.
Standard Sizes:
10" x 18"(254mm x 457mm) 10" x 400'(254mm x 121.9M)
Individual die cut shapes can be supplied.
Reinforcement:
TIA™800AL Series sheets are fiberglass reinforced.
