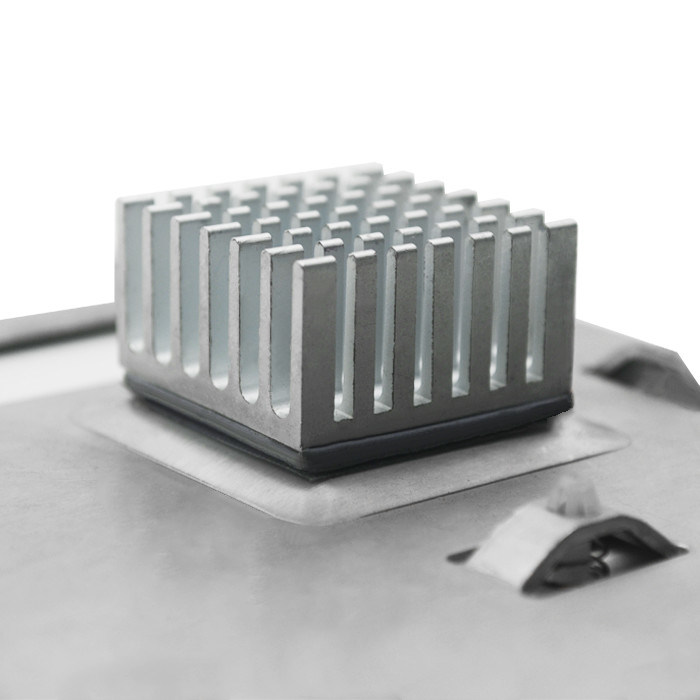

TIF800QE High Thermal Conductivity Gray Silicone Thermal Pad For Electronic Heat Dissipation
High Thermal Conductivity Gray Silicone Thermal Pad For Electronic Heat Dissipation
Product descriptions
The TIF®️800QE series of thermal interface materials is specifically designed to fill air gaps between heat-generating components and heat sinks or metal baseplates. It ofers excellent compliance, allowing it to conform tightly to heat sources with varying shapes and height differences. Even in confined or irregular spaces,it maintains stable thermal conductivity,enabling efficient heat transfer from discrete components or the entire PCB to the metal housing or heat sink.This significantly improves the heat dissipation eficiency of electronic lcomponents, thereby enhancing operational stability and extending device lifespan.
Features
> Good thermal conductive:13.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Application
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
| Typical Properties of TIF®800QE Series |
| Property |
Value |
Test method |
| Color |
Gray |
Visual |
| Construction |
Ceramic filled silicone elastomer |
ZKTM J024 |
| Density(g/cm³) |
3.45 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.012~0.020 |
0.030~0.200 |
ASTM D374 |
| 0.30~0.50 |
0.75~5.00 |
| Hardness (Shore 00) |
40 |
35 |
ASTM 2240 |
| Recommended Operating Temperature |
-40 to 200℃ |
ZKTM J025 |
| Breakdown Strength(V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant @1MHz |
7 |
ASTM D150 |
| Volume Resistivity(Ohm-meter) |
＞1.0X1012 |
ASTM D257 |
| Flame rating |
V-0 |
UL 94 (E331100) |
| Thermal conductivity (W/m-K) |
13 |
ASTM D5470 |
Product Specifications
Standard Thickness: 0.012" (0.30mm) ~0.200" (5.0mm).
Standard Size: 16" X 16" (406mm X 406mm).
The TIF®️ series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
