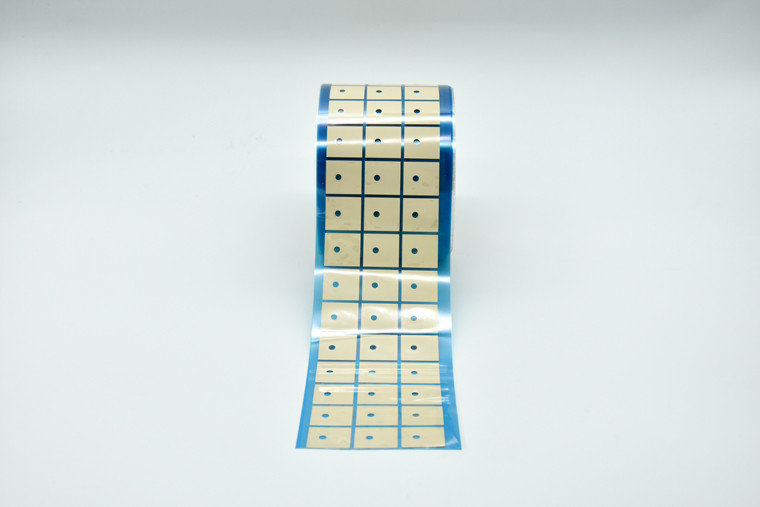

TIF100-86-37 High Quality Silicone Insulation Material For Automotive Electronics

Name: TIF100-86-37 High Quality Silicone Insulation Material For Automotive Electronics
Brand: CÔNG TY TNHH CÔNG NGHỆ ZIITEK VIỆT NAM
SKU: TIF100-86-37
Price: 4.10 USD
Availability: InStock

Product Details

Place of Origin: Vietnam

Brand Name: Ziitek

Certification: UL and RoHs

Model Number: TIF100-86-37

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: 0.1-10 USD/PCS

Packaging Details: 24*13*12cm cartons

Delivery Time: 3-5 work days

Payment Terms: T/T

Supply Ability: 100000pcs/day

Get Best Price

Product Details

Product Description

Highlight:

Products Name:	TIF100-86-37 High Quality Silicone Insulation Material For Automotive Electronics	Specific Gravity:	2.29g/cc
Construction & Compostion:	Ceramic Filled Silicone Elastomer	Thermal Conductivity:	1.8W/mK
Continuous Use Temp:	-60~250℃	Color:	Green
Keywords:	Silicone Insulation Material	Application:	Automotive Electronics

Products Name:	TIF100-86-37 High Quality Silicone Insulation Material For Automotive Electronics
Specific Gravity:	2.29g/cc
Construction & Compostion:	Ceramic Filled Silicone Elastomer
Thermal Conductivity:	1.8W/mK
Continuous Use Temp:	-60~250℃
Color:	Green
Keywords:	Silicone Insulation Material
Application:	Automotive Electronics

TIF100-86-37 High Quality Silicone Insulation Material For Automotive Electronics

TIF100-86-37 High Quality Silicone Insulation Material For Automotive Electronics

TIS^TM100-86-37 Series products are the high-efficiency insulation ones with thermal conduction properties.The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

Features

> Highly thermal conductive 1.8W/mK
> High dielectric strength
> Low thermal resistance with high voltage isolation

> Easy release construction
> Resistant to teaars and punctures

Applications

> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics

Typical Properties of TIS^TM100-86/37 series
Product Name	TIS100-86/37	Test Method
Color	Green	Visual
Construction &Compostion	Ceramic filled silicone elastomer	*******
Composite Thickness	0.125mm to 0.500mm	ASTM D374
Specific Gravity	2.29g/cm³	ASTM D297
Hardness	70 Shore A	ASTM D751
Tensile strength	2.0N/mm2	ASTM D412
Continuous Use Temp	-60 to 250℃	*******
Dielectric Breakdown Voltage	>8K Vac	ASTM D149
Dielectric Constant	2.9 MHz	ASTM D150
Volume Resistivity	4X10¹²Ohm-meter	ASTM D257
Flame Rating	94 V0	E331100
Thermal conductivity	1.8W/mK	ASTM D547

Product Specification

Product Thicknesses

TIS 105-86/30: 0.125mm

TIS 109-86/30: 0.225mm

TIS 112-86/30: 0.300mm

TIS 116-86/30: 0.400mm

TIS 120-86/30: 0.500mm

Product Sizes
12" x 160(304mm x 48.76M)
lndividual die cut shapes and custom thickness can be supplied.

Pleasecontact us for confirming.
The product come standard withfiberglass reinforcement designatedby the suffix " FG".

TIF100-86-37 High Quality Silicone Insulation Material For Automotive Electronics 0

Packaging Details & Lead time

The packaging of Thermal Insulation Materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
