TIF100-16-38UF Soft Silicone Thermal Pad Providing Consistent Thermal Performance And Electrical Insulation For Electronic Devices

Product Details

Place of Origin: Vietnam

Brand Name: Ziitek

Certification: UL and RoHs

Model Number: TIF100-16-38UF

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: 0.1-10 USD/PCS

Packaging Details: 24*13*12cm cartons

Delivery Time: 3-5 work days

Payment Terms: T/T

Supply Ability: 100000pcs/day

Get Best Price
Highlight:
Products Name:
Soft Silicone Thermal Pad Providing Consistent Thermal Performance And Electrical Insulation For Electronic Devices
Thermal Conductivity:
1.6W/mK
Density:
2.25 G/cm³
Keywords:
Silicone Thermal Pad
Color:
Deep Red
Hardness:
75 Shore 00
Breakdown Voltage(V/mm):
≥5500
Application:
Electronic Devices
Construction:
Ceramic Filled Silicone Elastomer
Products Name:
Soft Silicone Thermal Pad Providing Consistent Thermal Performance And Electrical Insulation For Electronic Devices
Thermal Conductivity:
1.6W/mK
Density:
2.25 G/cm³
Keywords:
Silicone Thermal Pad
Color:
Deep Red
Hardness:
75 Shore 00
Breakdown Voltage(V/mm):
≥5500
Application:
Electronic Devices
Construction:
Ceramic Filled Silicone Elastomer
TIF100-16-38UF Soft Silicone Thermal Pad Providing Consistent Thermal Performance And Electrical Insulation For Electronic Devices

Soft Silicone Thermal Pad Providing Consistent Thermal Performance And Electrical Insulation For Electronic Devices



Products description

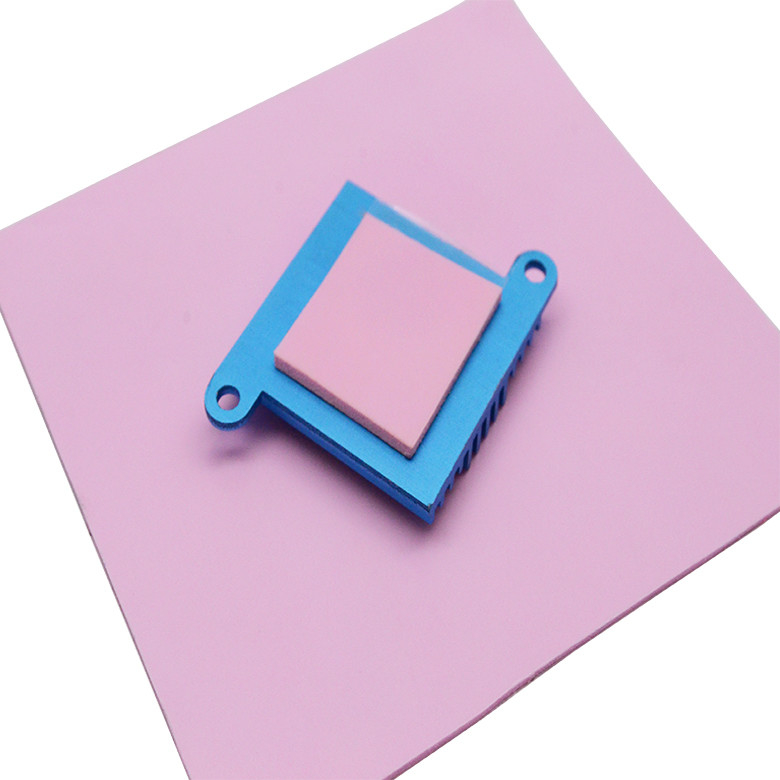

The TIF®100-16-38UF Series is a structurally supportive thermal pad designed to provide good heat dissipation while also ensuring structural support and durability. It can reliably fill interface gaps, transfer heat, and offer mechanical support for stacked components, resisting compressive deformation. This product is an ideal choice for applications that require a balance between heat dissipation, insulation, and mechanical stability.



Features:


> Good thermal conductive: 1.6W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> RoHS compliant
> UL recognized


Applications:


> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components



Typical Properties of TIF®100-16-38UF Series
Property Value Test method
Color Deep red Visual
Construction Ceramic filled silicone elastomer ******
Density(g/cm³) 2.25 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
0.25~0.50 0.75~5.00
Hardness(Shore 00) 75 75 ASTM 2240
Recommend Operating Temperature(℃) -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥ 5500 ASTM D149
Dielectric Constant @1Mhz 5.5 ASTM D150
Volume Resistivity (Ohm-meter) ≥1.0X1012 ASTM D257
Thermal Conductivity (W/m-K) 1.6 ASTM D5470
1.6 ISO22007
Fire rating V-0 UL 94 (E331100)

Product Specifications
Standard Thickness: 0.010" (0.25 mm)~ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm).

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
