TIF100 H80-11E Good Thermal Conductive Silicone Thermal Pad

Name: TIF100 H80-11E Good Thermal Conductive Silicone Thermal Pad
Brand: CÔNG TY TNHH CÔNG NGHỆ ZIITEK VIỆT NAM
SKU: TIF100 H80-11E
Price: 4.10 USD
Availability: InStock

Product Details

Place of Origin: Vietnam

Brand Name: Ziitek

Certification: UL and RoHs

Model Number: TIF100 H80-11E

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: 0.1-10 USD/PCS

Packaging Details: 24*13*12cm cartons

Delivery Time: 3-5 work days

Payment Terms: T/T

Supply Ability: 100000pcs/day

Get Best Price

Product Details

Product Description

Highlight:

Products Name:	Good Thermal Conductive Silicone Thermal Pad	Keywords:	Thermal Pad
Density:	3.5g/cm³	Color:	Gray
Hardness:	35±10 Shore 00	Dielectric Breakdown Voltage:	≥5500 VAC
Application:	Electoranic Products Cooling	Thermal Conductivity:	8.0W/mK

Products Name:	Good Thermal Conductive Silicone Thermal Pad
Keywords:	Thermal Pad
Density:	3.5g/cm³
Color:	Gray
Hardness:	35±10 Shore 00
Dielectric Breakdown Voltage:	≥5500 VAC
Application:	Electoranic Products Cooling
Thermal Conductivity:	8.0W/mK

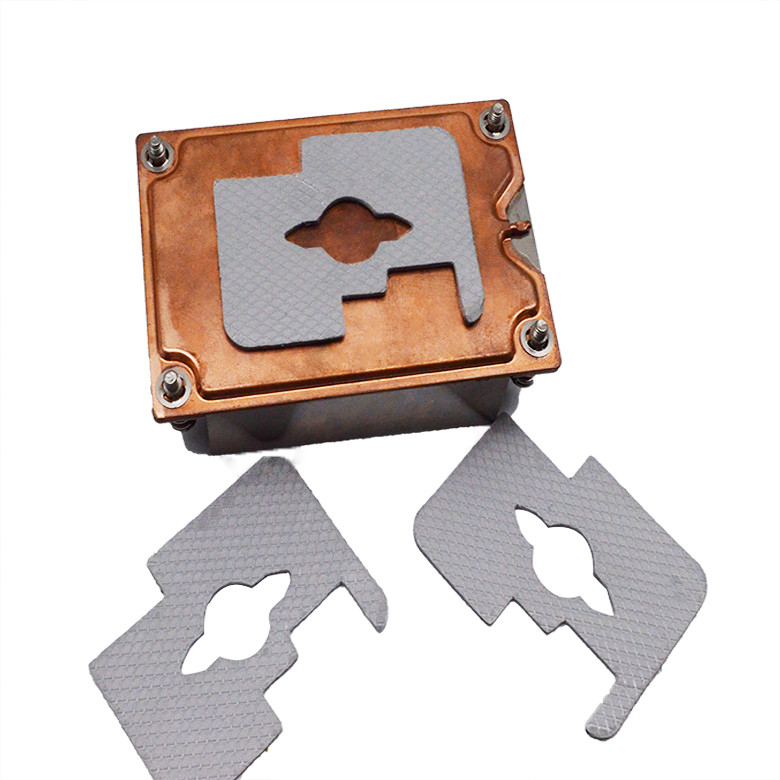

TIF100 H80-11E Good Thermal Conductive Silicone Thermal Pad

TIF100 H80-11E Good Thermal Conductive Silicone Thermal Pad

Ziitek TIF™100 H80-11E is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

TIF100 H80-11E Good Thermal Conductive Silicone Thermal Pad 0

Features:

> Good thermal conductive: 8.0W/mK
> Good thermal conductivity
> Naturally tacky needing no furtheradhesive coating
> Soft and Compressible for low stressapplications
> Available in varies thickness

Applications:

> Semiconductor automated test equipment (ATE)
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
> Routers

Typical Properties of TIF100 H80-11E Series
Property	Value	Test method
Color	Gray	Visual
Construction & Compostion	Ceramic filled silicone elastomer	******
Density	3.5g/cc	ASTM D297
Thickness range	0.020"(0.5mm)~0.200"(5.0mm)	ASTM D374
Hardness	35±10 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 160℃	******
Dielectric Breakdown Voltage	≥5500 VAC	ASTM D149
Dielectric Constant	5.5 MHz	ASTM D150
Volume Resistivity(Ohm-cm)	1.0X10¹²	ASTM D257
Fire rating	94 V0	UL E331100
Thermal conductivity	8.0W/m-K	ASTM D5470

Products Thickness:
0.020 inch to 0.200 inch(0.5mm to 5.0mm)

Products Size:

8"*16"(203mm*406mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
