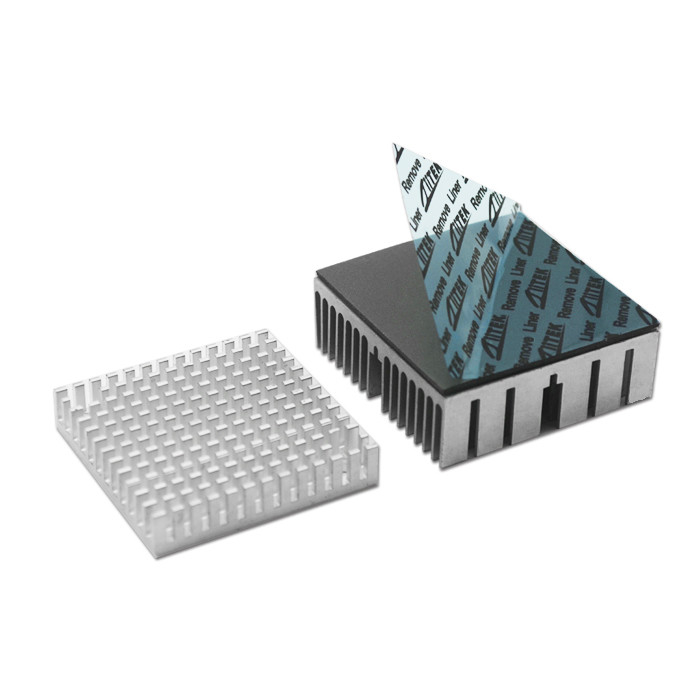

TIF100-20-02S High Thermal Conductive Pad For Automotive Silicon Thermal Pad
High Thermal Conductive Pad For Automotive Silicon Thermal Pad
Product descriptions
The TIF®100-20-02S is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features
> Good thermal conductive 2.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Application
> Mainboard/mother board
> Notebook
> Power supply
> Micro heat pipe thermal solutions
> CPU
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> LED floor light
> Routers
> Medical Devices
| Typical Properties of TIF®100-20-02S Series |
| Property |
Value |
Test method |
| Color |
Gray white |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Density(g/cm³) |
2.65 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.010~0.020 |
0.030~0.200 |
ASTM D374 |
| 0.25~0.50 |
0.75~5.00 |
| Hardness(Shore 00) |
65 |
45 |
ASTM 2240 |
| Recommended Operating Temperature (℃) |
-40 to 200 |
*** |
| Breakdown Voltage(V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant @1Mhz |
4.7 |
ASTM D150 |
| Volume Resistivity(Ohm-cm) |
＞1.0X1012 |
ASTM D257 |
| Thermal Conductivity (W/m-K) |
2.0 |
ASTM D5470 |
| 2.0 |
ISO22007 |
| Fire rating |
V-0 |
UL 94 (E331100) |
Product Specifications
Standard Thickness:0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

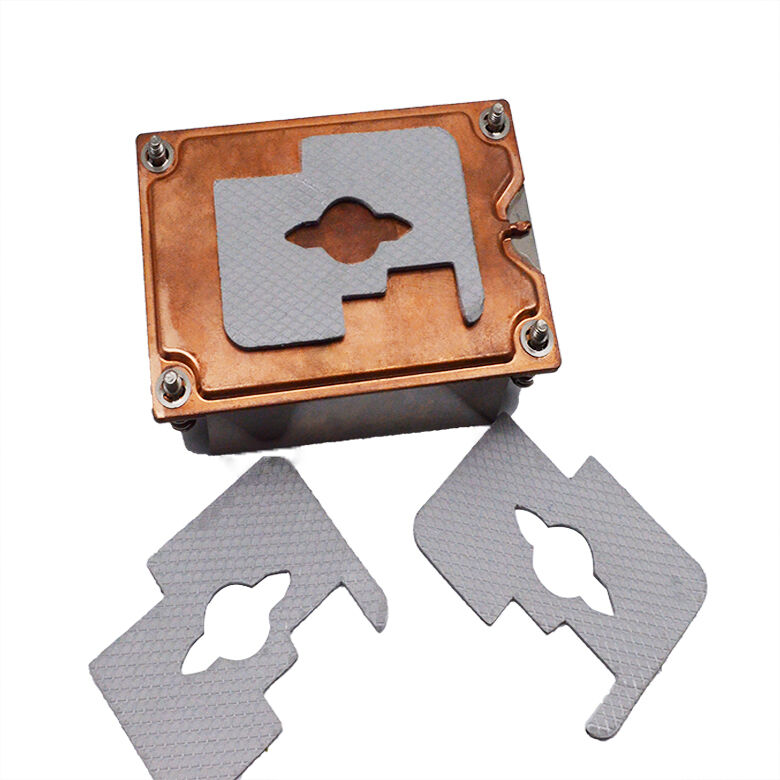

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
