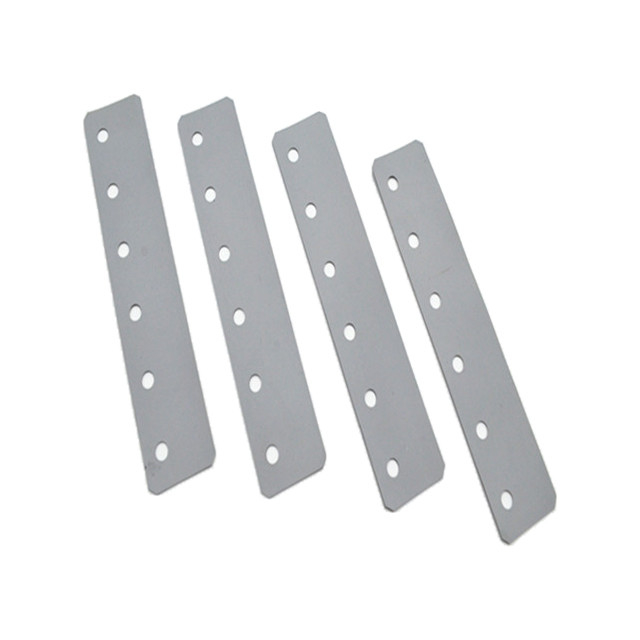

TIS100-10 Silicone Thermally Conductive Insulator For Communication Equipment

Name: TIS100-10 Silicone Thermally Conductive Insulator For Communication Equipment
Brand: CÔNG TY TNHH CÔNG NGHỆ ZIITEK VIỆT NAM
SKU: TIS100-10
Price: 4.10 USD
Availability: InStock

Product Details

Place of Origin: Vietnam

Brand Name: Ziitek

Certification: UL and RoHs

Model Number: TIS100-10

Payment & Shipping Terms

Minimum Order Quantity: 1000pcs

Price: 0.1-10 USD/PCS

Packaging Details: 24*13*12cm cartons

Delivery Time: 3-5 work days

Payment Terms: T/T

Supply Ability: 100000pcs/day

Get Best Price

Product Details

Product Description

Highlight:

Products Name:	Silicone Thermally Conductive Insulator For Communication Equipment	Thermal Conductivity:	1.0W/mk
Color:	Blue	Construction & Compostion:	Ceramic Filled Silicone Elastomer / Fiberglass
Specific Gravity:	1.85g/cc	Tensile Strength:	20kg/c㎡
Keywords:	Thermally Conductive Insulator	Thickness Range:	0.25mm,2.0mm,4.0mm

Products Name:	Silicone Thermally Conductive Insulator For Communication Equipment
Thermal Conductivity:	1.0W/mk
Color:	Blue
Construction & Compostion:	Ceramic Filled Silicone Elastomer / Fiberglass
Specific Gravity:	1.85g/cc
Tensile Strength:	20kg/c㎡
Keywords:	Thermally Conductive Insulator
Thickness Range:	0.25mm,2.0mm,4.0mm

TIS100-10 Silicone Thermally Conductive Insulator For Communication Equipment

Silicone Thermally Conductive Insulator For Communication Equipment

TIS100-10 Series products are the high-efficiency insulation ones with thermal conduction properties.The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

TIS100-10 Silicone Thermally Conductive Insulator For Communication Equipment 0

Features

> Highly thermal conductive
> High dielectric strength
> Low thermal resistance with high voltage isolation

> Easy release construction
> Resistant to teaars and punctures

Applications

> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

> Notebook
> Power supply
> Memory Modules
> Mass storage devices

Typical Properties of TIS100-10 series
Product Name	TIS110-10	TIS180-10	TIS1160-10	Test Method
Color	Gray			Visual
Construction &Compostion	Ceramic filled silicone elastomer			*******
Composite Thickness	0.25mm	2.0mm	4.0mm	ASTM D374
Specific Gravity	1.85g/cc			ASTM D297
Tensile Strength	20 kg/cm²			ASTM D412
Continuous Use Temp	-45 to 200℃			*******
Dielectric Breakdown Voltage	>10000 Vac			ASTM D149
Dielectric Constant	5.5 MHz			ASTM D150
Volume Resistivity	4.6X10¹³ Ohm-meter			ASTM D257
Flame Rating	94 V0			E331100
Thermal conductivity	1.0 W/mK			ASTM D547

Standard Thicknesses:
0.25mm, 2.0mm, 4.0mm,

Consult the factory alternate thickness.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.

Request adhesive on doule side with "A2" suffix.

Product Sizes
12" x 160'(304mm x 48.76M)
lndividual die cut shapes and custom thickness can be supplied.

Packaging Details & Lead time

The packaging of Thermal Insulation Materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
