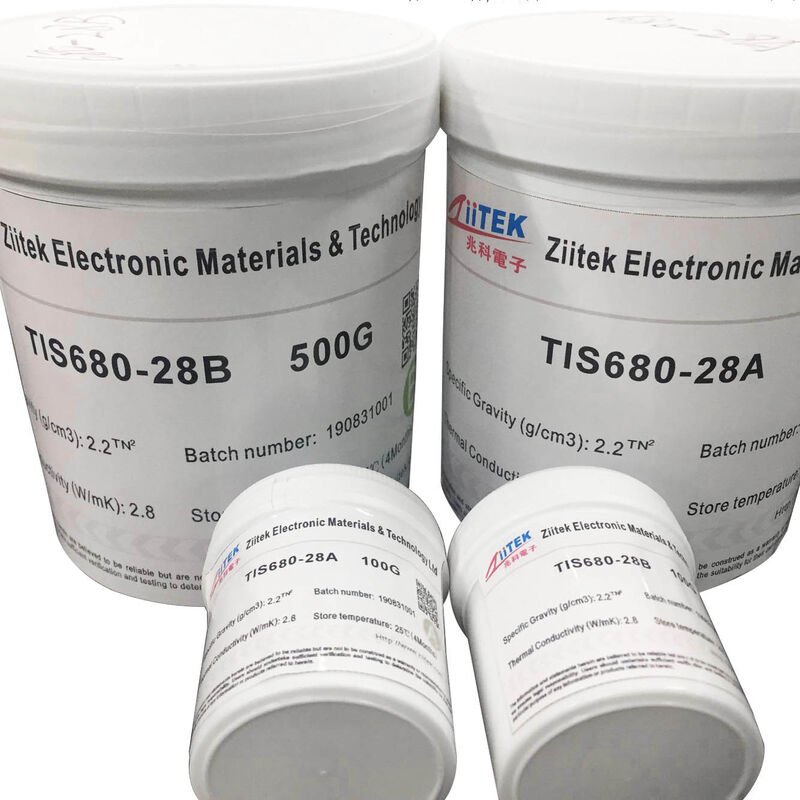

TIS680-28AB Silica Gel Thermal-Conducting Potting Compound Two Component Offering Flexibility Elasticity And Heat Transfer For Electronics

Product Details

Place of Origin: Vietnam

Brand Name: Ziitek

Certification: UL and RoHs

Model Number: TIS680-28AB

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: 0.1-10 USD/kg

Packaging Details: 1kg/can

Delivery Time: 3-5 work days

Payment Terms: T/T

Supply Ability: 10000KG/month

Get Best Price
Highlight:
Products Name:
Silica Gel Thermal-Conducting Potting Compound Two Component Offering Flexibility Elasticity And Heat Transfer For Electronics
Construction:
Ceramic-filled Silicone
Thermal Conductivity:
2.8W/mk
Color:
White
Hardness:
65(Shore 00)
Keywords:
Thermal Conductive Glue
Usage:
Potting
Part:
Two Component
Mix Ratio:
1:1
Breakdown Voltage (V/mm):
≥10000
Products Name:
Silica Gel Thermal-Conducting Potting Compound Two Component Offering Flexibility Elasticity And Heat Transfer For Electronics
Construction:
Ceramic-filled Silicone
Thermal Conductivity:
2.8W/mk
Color:
White
Hardness:
65(Shore 00)
Keywords:
Thermal Conductive Glue
Usage:
Potting
Part:
Two Component
Mix Ratio:
1:1
Breakdown Voltage (V/mm):
≥10000
TIS680-28AB Silica Gel Thermal-Conducting Potting Compound Two Component Offering Flexibility Elasticity And Heat Transfer For Electronics

Silica Gel Thermal-Conducting Potting Compound Two Component Offering Flexibility Elasticity And Heat Transfer For Electronics



Products description



 TIS®680-28AB is a two-component potting adhesive.When Component A and Component B are mixed in a specific ratio, the adhesive can cure and form into' shape either at room temperature or under heating conditions. After curing, it forms a dense elastomer with integrated performance characteristics: good thermal conductivity, electrical insulation, resistance to extreme temperatures, and anti-aging properties. It features low shrinkage rate, can closely adhere to various substrates, and effectively fills thegaps between electronic components. This product delivers comprehensive protection for electronic assemblies, including thermal conduction, insulation, waterproofing, shock absorption, flame retardancy, and mechanical safeguarding.



Features



> Good thermal conductive: 2.8W/mK

> Good electrical insulation performance
> Controllable curing performance
> Flexibly adjustable mechanical properties
> Low viscosity facilitating gas release
> Good solvent and water resistance
> Excellent process compatibility
> Excellent resistance to extreme temperatures



Application



> New energy vehicle electronics
> Industrial electronics and power equipment
> Consumer electronics
> Medical electronics
> Aerospace electronic components
> Rail transit electronic equipment
> Marine detection equipment



Typical Properties of TIS®680-28AB
Uncured Material Properties
Property Value Test Method
Construction Ceremic-filled silicone -
Color/Part A White Visual
Color/Part B White Visual
Part A Viscosity (mPa.s) 6000 GB/T 10247
Part B Viscosity (mPa.s) 6000 GB/T 10247
Mix Ratio 1:1 -
Shelf life (Months) 6 (Unopened) -
Cure Schedule
Pot Life @25℃ 30 mins Ziitek Test Method
Cure @25℃ 3 hours Ziitek Test Method
Cure @70℃ 20 mins Ziitek Test Method
Cure Material Properties
Color White Visual
Hardness (Shore 00) 65 ASTM D2240
Density (g/cm³) 2.2 ASTM D792
Recommended Operating temperature (℃) -45 ~200 -
Flame Rating V-0 UL 94
Thermal Conductivity (W/mK) 2.8 ASTM D5470
Breakdown Voltage (V/mm) ≥10000 ASTM D149
Dielectric Constant @1MHz 4.2 ASTM D150
Volume Resistivity (Ohm·cm) >1.0x1013 ASTM D257

Package:
300ml/Tube, 24PCS/Box
