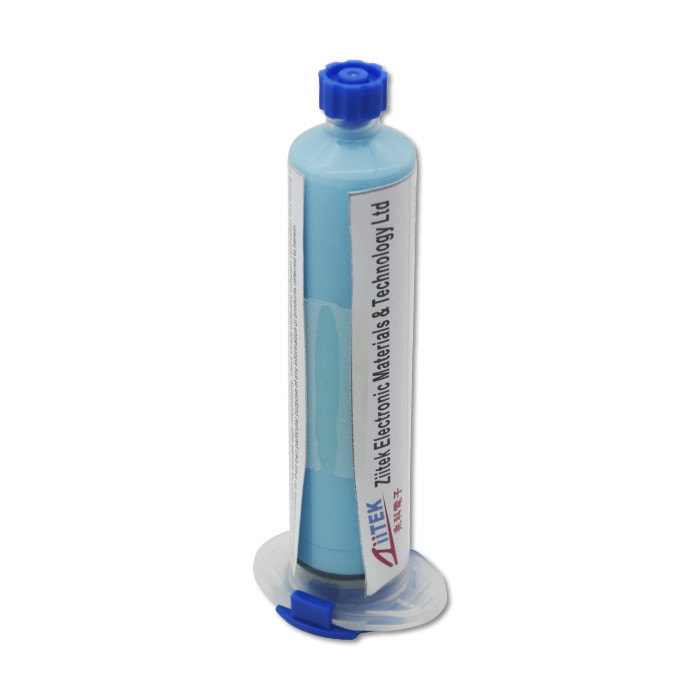

TIF040-12 Heat Sink Thermally Conductive Gel Adhesive Injector Cpu Gpu
TIF040-12 Heat Sink Thermally Conductive Gel Adhesive Injector Cpu Gpu
TIF040-12 is a soft silicone putty thermal gap filler,which blend with exclusive formula,that offer superior thermal performance, and compressibility.
Due to TIF040-12 is made by high vicosity silicon oil ,that can prevent thermal formula seprate from it. Besides ,compared with traditionally thermal pad, it can control bonded shifiting issue much better.
TIF040-12 operation mold is simliar as grease ,such as silkprint and screen print or automatic injected facility.
TIF040-12 can be applied on chip micro processor,PPGAs,Micro BGA package,BGA package,DSP chip,LED lighting and other high power electric component.
Feature
> Thermal conductivity: 4.0W/mK
> Soft, very low compression
> Low thermal inpedance
> Operate automaticly
> Proven long-term reliability
Application
> Mass storage devices
> Heat-sink & frame
> LED backlight module,LED lighting
> High speed hardware driver
> Micro heat pipe
> vihicel enginee controler
> Telecom industry
> Semiconductor automaticlaboratory equipment.
| TIFTM040-12 Typical Properties |
| Property |
Value |
Test method |
| Color |
blue |
Visual |
| Construction & Composition |
Ceramic filled silicon material |
***** |
| Viscosity |
2000 mPa.s |
GB/T 10247 |
| Density |
2.5g/cm³ |
ASTM D297 |
| Thermal conductivity |
4.0W/mK |
ASTM D5470 |
| Thermal diffusivity |
0.93 mm²/s |
ISO 22007-2 |
| Specific heat capacity |
2.2MJ/m3K |
ISO 22007-2 |
| Continuous Use Temperature |
-45 ~200°C |
Ziitek Test Method |
| Dielectric breakdown strength |
200 V/mil |
ASTM D149 |
| Flame Rating |
94V0 |
UL E331100 |
Packing details
30 cc/pc, 98 pc/box;
300 cc/pc , 6 pc/box
We offer the custom packaged in syringes for automated despensing applications.
Please contact us for confirming.
