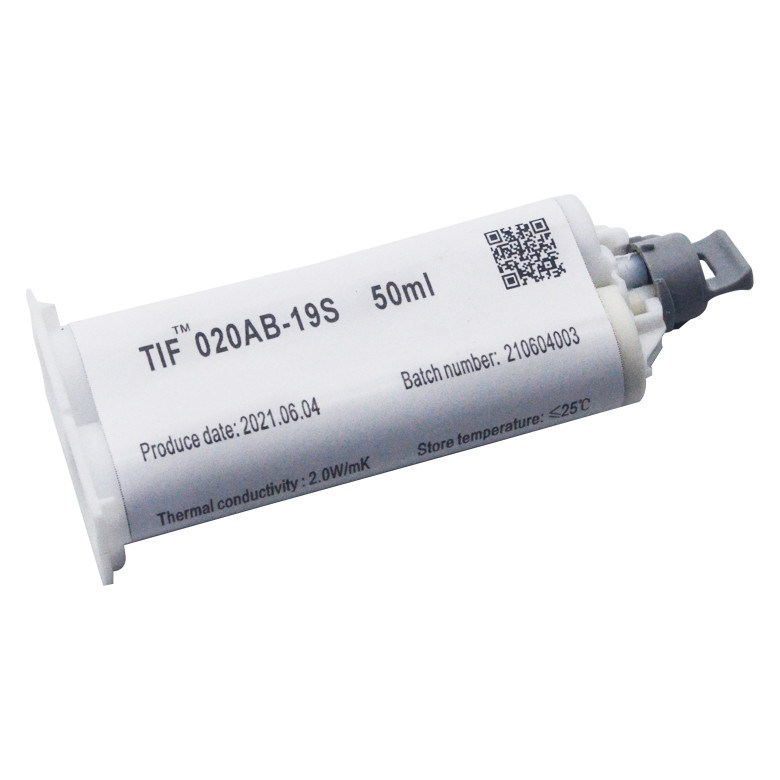

TIF020AB-19S Two Component Precuring Thermal Gel For Smart Phone And Tablet Computer

Name: TIF020AB-19S Two Component Precuring Thermal Gel For Smart Phone And Tablet Computer
Brand: CÔNG TY TNHH CÔNG NGHỆ ZIITEK VIỆT NAM
SKU: TIF020AB-19S
Price: 4.10 USD
Availability: InStock

Product Details

Place of Origin: Vietnam

Brand Name: Ziitek

Certification: RoHS

Model Number: TIF020AB-19S

Payment & Shipping Terms

Minimum Order Quantity: 1000 pcs

Price: 0.1-10 USD/PCS

Packaging Details: 25*24*13cm canton

Delivery Time: 3-5 work days

Payment Terms: T/T

Supply Ability: 100000pcs/month

Get Best Price

Product Details

Product Description

Highlight:

Products Name:	Two Component Precuring Thermal Gel For Smart Phone And Tablet Computer	Thermal Conductivity:	2.0W/mK
Keywords:	Thermal Gel	Application:	Smart Phone And Tablet Computer
Specific Gravity:	3.2g/cm³	Continuous Use Temperature:	-45~200℃
Color:	White / Yellow	Hardness:	45 Shore 00

Products Name:	Two Component Precuring Thermal Gel For Smart Phone And Tablet Computer
Thermal Conductivity:	2.0W/mK
Keywords:	Thermal Gel
Application:	Smart Phone And Tablet Computer
Specific Gravity:	3.2g/cm³
Continuous Use Temperature:	-45~200℃
Color:	White / Yellow
Hardness:	45 Shore 00

TIF020AB-19S Two Component Precuring Thermal Gel For Smart Phone And Tablet Computer

Two Component Precuring Thermal Gel For Smart Phone And Tablet Computer

TIF020AB-19S is a highly thermal conductive, liquid gap filling material. It is provide with two-component and different temperature curing system. The product was supplied as highly thermal conductive, soft and elastomer for coupling on electrical devices modul. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components. It is liquid approach offer variety of thickness, replacing individual die-cut and specific pad thickness. Different from grease, the cured product is dry and can be touch. It can intented for use in thermal applications.

Feature

< Good thermal conductive: 2.0W/mK

< UL recognized
< Naturally tacky needing no further adhesive coating
< Two-part formulation for easy storage
< High durability
< Optimized shear thinning characteristics for ease of dispensing

Applications

< Notebook
< Set top boxes
< Monitoring the Power Box
< High speed mass storage drives
< Heat sink any heat generating semiconductor

Typical Properties of TIF020AB-19S Series
Typical Uncured Material
Property	Numerical	Test Method
Color/Part A	White	Visual
Color/Part B	Yellow	Visual
Viscosity as Mixed (cps)	550 Pa.s	GB/T 10247
Density	3.2g/cm³	ASTM D792
Mix Ratio	1:1	******
Shelf Life@25℃	6 months	******
Cure Schedule
Pot Life @25℃	30min	******
Cure @25℃	60min	******
Cure @100℃	30min	Visual
Cure Properties
Color	Yellow	Visual
Hardness	45 shore00	ASTM D2240
Continuous Use Temp	-45~200℃	******
Voltage Strength	275V/mil	ASTM D149
Dielectric Constant	3.8MHz	ASTM D150
Volume Resistivity	≥1.0*10¹² Ohm-cm	ASTM D257
Flame Rating	94V0	E331100
Thermal Conductivity	2.0W/Mk	ISO22007-2
Specific Heat Capacity	2.3MJ/m³K	ISO22007-2

Product packing details:
50cc/pc, 48pcs/box; 400cc/pc, 9pcs/box
We offer the custom packaged in Syringes for automated despensing applications. Please contact us for confirming.

TIF020AB-19S Two Component Precuring Thermal Gel For Smart Phone And Tablet Computer 0

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
